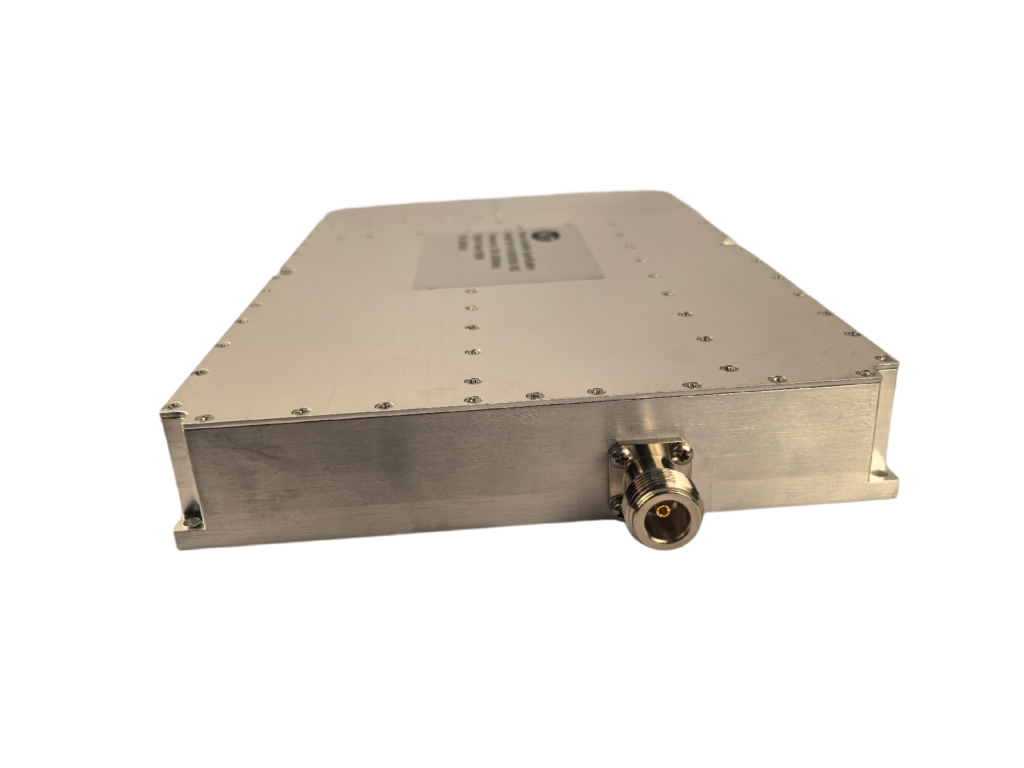

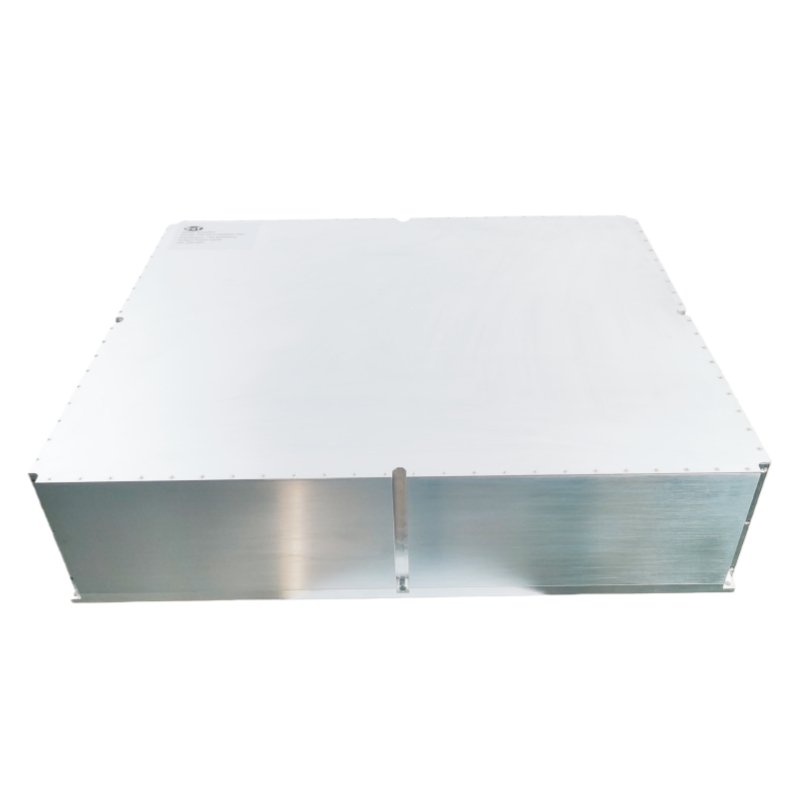

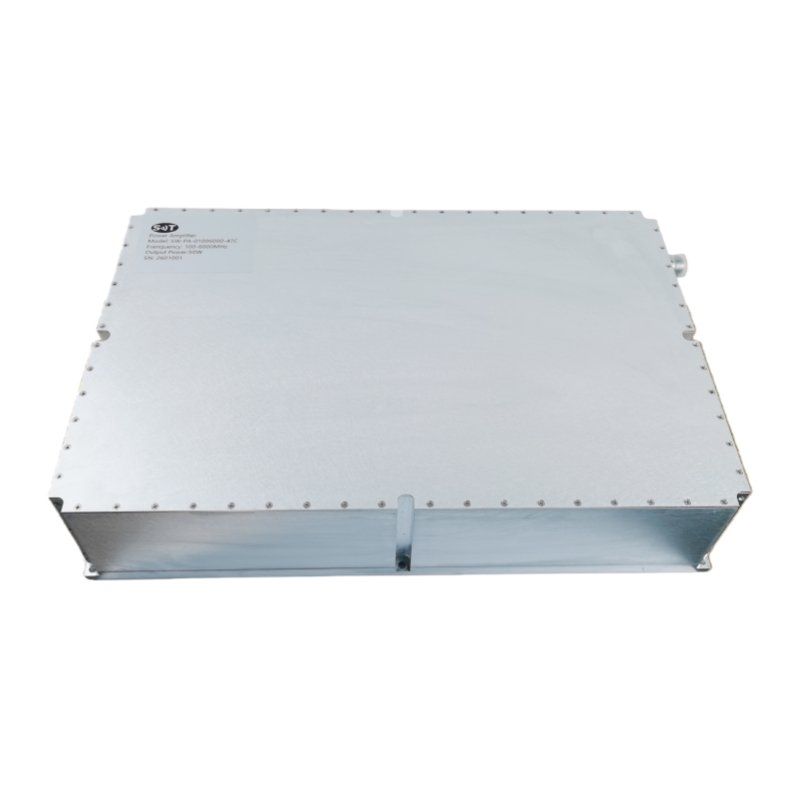

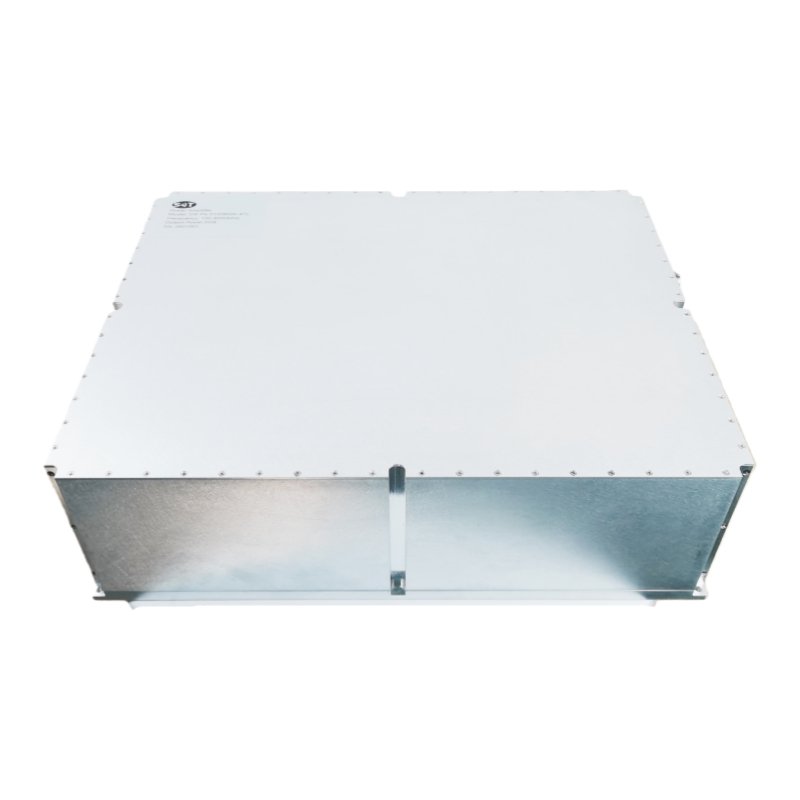

Description
The module is designed for both Industrial and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Typical performance at +28VDC +25oC, and in a 50Ω system.
RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 10000 | 13000 | MHz | |
RF INPUT | 0 | 3 | 5 | dBm |
P-sat Power Output | 42 | 43 | 45 | dBm |
Power Gain Flatness | ±1.5 | dB | ||
Spurious Signals | -50 | dB | ||
Input VSWR | 1.8 | 2 | ||
Operating Voltage | 28 | 30 | 32 | VDC |
In-Out impedance | 50 | Ω | ||
Current | 3 | A | ||
MECHANICAL | ||
PARAMETER | VALUE | UNIT |
Dimensions (L x W x H) | 60*70* 15 | mm |
RF Connectors (Input / Output) | SMA female/SMA female | — |
DC / Control Connector | Feeding Capacitor | — |
Cooling | Consider heat dissipation with the system | — |
Mounting | 3-6 Thru Hole | — |
Weight | ≤1.5 | kg |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. (Housing Temp.) | -40 | +60 | °C |
Humidity Range | 0-100 | % | |
PA Baseplate Shutoff Temperature | + 90 | °C | |
INPUT/OUTPUT panel Connector | |||
AMPLIFIER CONNECTOR TYPE: | —— | ||
TRIAD CABLE PART NUMBER: | —— | ||
NUMBER | interface type | DESCRIPTION | |
X1 | SMA female | RF IN | |
X2 | SMA female | RF OUT | |
X3 | Feeding Capacitor | DC and Control Interface | |
